[Ubuntu] How to build local apt repositories

  1. Edit your sources.list file
  2. Copy your debian packages to the folder where is the packages repository directory  (*.deb folder)
  3. Change into the packages repository directory  (cd ~/repository)
  4. Generate a Packages.gz file  (sudo dpkg-scanpackages . /dev/null | gzip -9c > Packages.gz)
  5. Install the build-essential package  (sudo apt-get install build-essentiall
  6.  Update apt-get server packages list  (sudo apt-get update)

Monday, August 27, 2012

[SDN] HP's SDN solution


HP provides 3 tools (softwares) to deal with network virtualization using SDN
  • EVI (Ethernet Virtual Interconnect)
    • EVI creates a tunnel through the Layer 3 network by encapsulating the packets traveling between the data centers. Rival Cisco already has software that can do this, called OTV (Overlay Transport Virtualization), but it charges extra for that software.
  • MDC (Multitenant Device Context)
    • It allows for segregating the resources of multiple tenants in a virtualized environment without buying separate switches. This secures the data and applications of one department or cloud service customer from other tenants.
  • VSA
    • StoreVirtual VSA, for virtualizing storage management. The software is based on VSA (virtual storage appliance) technology from LeftHand Networks, which HP acquired in 2008.

Tuesday, August 21, 2012

[Trema] The real case to test flow-based ECMP Routing Switch App

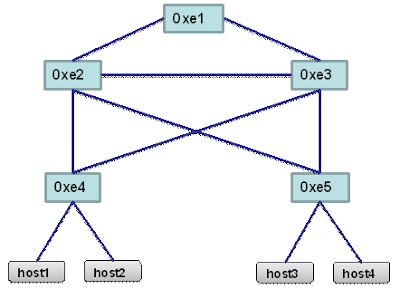

The following picture is a topology that used in testing my ECMP Routing Switch App.

After host3 send packets to host1, the app starts making path process and the related log as below. You will see this app picks up 2 paths ( "0xe5->0xe3->0xe4"  and  "0xe5->0xe2->0xe4" ) and choose one of them to setup flow entries.

[pickup_next_candidate] Find a candidate = 0xe5
[update_distance] node = 0xe3, distance = 1
[update_distance] node = 0xe2, distance = 1
[pickup_next_candidate] Find a candidate = 0xe3
[update_distance] node = 0xe1, distance = 2
[update_distance] node = 0xe4, distance = 2
[update_distance] node = 0xe2, distance = 1
[pickup_next_candidate] Find a candidate = 0xe2
[update_distance] node = 0xe1, distance = 2
[update_distance] node = 0xe4, distance = 2
[pickup_next_candidate] Find a candidate = 0xe1
[pickup_next_candidate] Find a candidate = 0xe4
[build_hop_list] build a hop = 0xe4
[build_hop_list] build a hop = 0xe3
[build_hop_list] build a hop = 0xe5
[resolve_path] find a hop list 0
[pickup_next_candidate] Find a candidate = 0xe5
[update_distance] node = 0xe2, distance = 1
[pickup_next_candidate] Find a candidate = 0xe2
[update_distance] node = 0xe1, distance = 2
[update_distance] node = 0xe4, distance = 2
[pickup_next_candidate] Find a candidate = 0xe1
[pickup_next_candidate] Find a candidate = 0xe4
[build_hop_list] build a hop = 0xe4
[build_hop_list] build a hop = 0xe2
[build_hop_list] build a hop = 0xe5
[resolve_path] find a hop list 1
[resolve_path] has 2 paths, pick up the key = 0 from hash_value = 2169503748

[Trema][Concept] How to do flow-based ECMP in Routing Switch App

  As we have known that Routing Switch App uses Dijkstra algorithm to pick up the lowest cost of the path. Only one path will be selected. If we want to do flow-based ECMP, how to do it? I have a simple way to slightly modify the Routing Switch App and then it can become "ECMP Routing Switch" App.

  Here is a topology as follows. If the source is PC1 and destination is PC2, we can know that the source switch is A and destination switch is B. I will base on this to explain my idea.

  First, we setup a number of multi-path , for instance, 8, and let the loop to do Dijkstra algorithm these times.
  Second, we need to add a new chosen flag to record nodes in the path that we have picked up, and get rid of the source and destination node. And also, when Dijkstra algorithm is running, we also need to add a condition to avoid from choosing the node whose chosen flag is true.

For instance, Path 1 is A->B->C->D. We need to add flag on B and C as true.
                        Path 2 is A->E->F->D. We need to add flag on E and F as true.

In this case, Dijkstra algorithm is not able to pick up the third path so that making paths is done.
I have implemented this in Routing Switch App and it works. I will post the real case in the next article.

Tuesday, August 7, 2012

[Trema] Provide a monitoring application to watch port and flow loading

I currently provide a initial version of monitoring application to watch port and flow loading information. Here are some items about the configuration and criteria for sending notification.

The configuration
  • port_percentage_condition
    • the threshold of port loading percentage
  • port_setting_feature_rate
    • the speed rate of port
  • flow_bit_rate_conditon
    • the threshold of flow loading
  • flow_times_condition
    • how many seconds will flow become big flow when being over the threshold of flow loading

The notification criteria of Port Loading
  • Check port loading per 4 seconds
  • Calculate the percentage of port loading
    • port_bit_rate = avg_rx_bytes * 8
    • port_loading_percentage = port_bit_rate * 100 / port_feature_rate
  • If the port loading percentage is higer than port_percentage_condition, then it sends port loading notification
The notification criteria of Flow Loading
  • Check port loading per 4 seconds
  • Calculate the flow loading ( flow_bit_rate )
    • flow_bit_rate = bytes_count * 8 / duration seconds
  • If flow_bit_rate  is bigger than flow_bit_rate_condition, then flow_times adds 1.
  • If flow_times is higher than flow_times_condition, for instance, 3, then it sends flow loading notification

[Introduction] ar and ranlib

ar and ranlib
ar this program can do the following actions to the archive (static library)
create, modify, and extract.Following is a list of several commonly used options explained:
  • d: delete
    • Remove files from the archive
  • r: replace
    • Insert archive files to be replaced
  • u: update
    • option 'r' is usually to replace all, but the option u only will be inserted over the files in the archive in
  • v: verbose
    • The implementation, as well as additional information
for example:
   > ar uv mylib.a first.o second.o

These directives is to establish two obj file into a mylib.a, and shows the implementation of the process information

ranlib generates an index to the contents of an archive and stores it in the archive. The index lists each symbol defined by a member of an archive that is a relocatable object file.

You can use nm-s or nm, - print-armap Include to list this index

To run this program is to increase the speed of linking to the library and allows routines in the library can call each other without having to worry about these routines in the archive of the placement order

[Cucumber] An brief introduction

I just saw the "Cucumber" and was amazed by its power of scenario testing with human-readable syntax and sentences. It is so amazing...
If you guys want to do the job for testing, that is a good choice~

For more information in details, please also check it out:

How to install Cucumber
sudo apt-get install libxslt1-dev libxml2-dev racc
sudo apt-get install gem
sudo gem install gherkin
sudo gem install cucumber./script/generate cucumber
rake features

[How To] Add ZeroMQ in Trema App

If someone wants to add the mechanism of ZeroMQ to send message from Trema Application, for instance, Routing_Switch, there are several things that need to do and I have tested OK.

Example Trema App: Routing_Switch

1. Install ZeroMQ
2. Modify its Makefile:
  • add the include folder location of ZeroMQ :
    • CFLAGS = $(shell $(TREMA)/trema-config --cflags) -I/home/liudanny/SourceCode/zeromq2-1/include -I../topology -g -std=gnu99 -D_GNU_SOURCE -fno-strict-aliasing -Werror -Wall -Wextra -Wformat=2 -Wcast-qual -Wcast-align -Wwrite-strings -Wconversion -Wfloat-equal -Wpointer-arith
  • add library name of zeroMQ and link it:
    • LDFLAGS = $(shell $(TREMA)/trema-config --libs) -lzmq -L../topology -ltopology
3. Write your ZeroMQ code in Routing_Switch.
